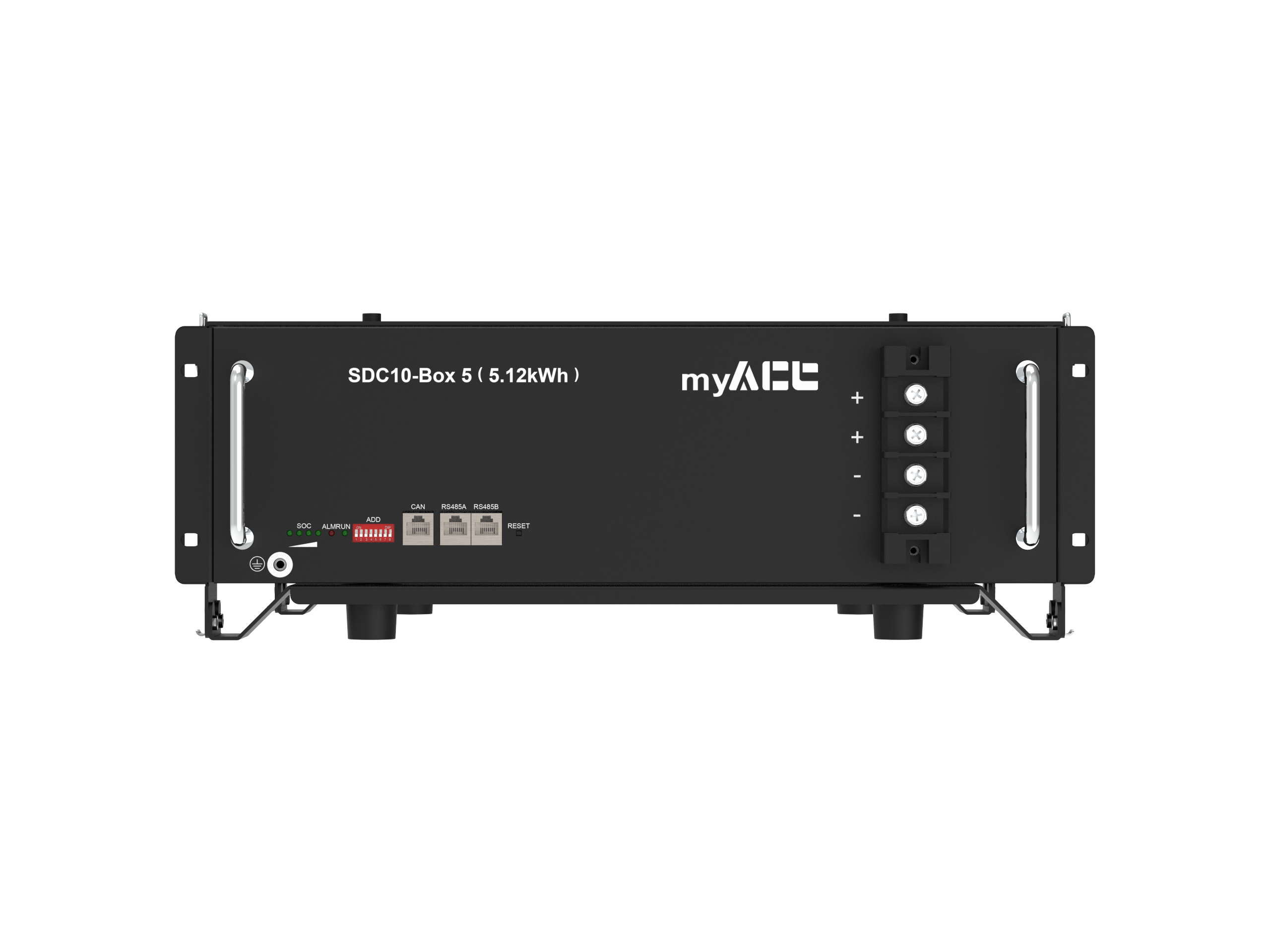

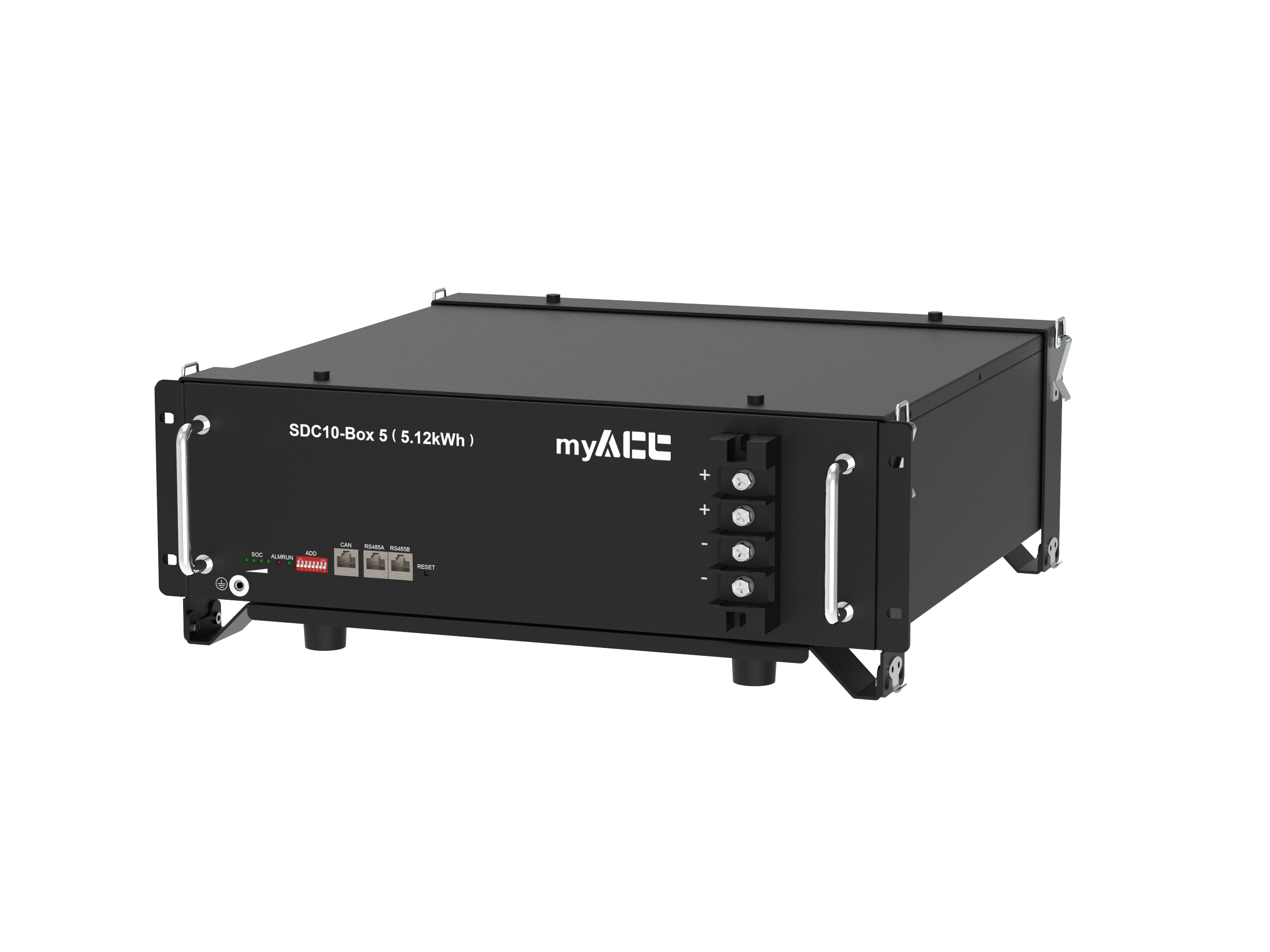

SDC10-Box/ABM10-Box series battery pack is a 51.2V battery system, using 19” standard rack design, with mounting accessories to support a variety of installation methods (rack, wall-mounted and stacked combined installation).
An SDC10-Box/ABM10-Box battery pack system contains 1~10 SDC10-Box5/ABM10-Box5 battery modules in parallel, capacity between 5 and 50kWh (available). By paralleling multiple SDC10-Box5/ABM10-Box5 battery pack systems, systems up to 100kWh can be formed.
Passed certification: UL1973(UL)、IEC62619、CE-EMC、UN38.3、CEI0-21、UKCA、VDE2510-50、IEC-EN62477.
Compatible Inverters: Deye、Growatt（SPH/SPF）、Goodwe、Victron、Sofar、SMA 、SRNE、LUX、Solis、
TBB、Soruide、Megarevo、Sungrow、Afore、Sacolar、SMK solar、Voltronic.
Features
- Safe and stable
Unit-level monitoring and long-cycle LFP cells, safe operation of 10+ million sets on the network.

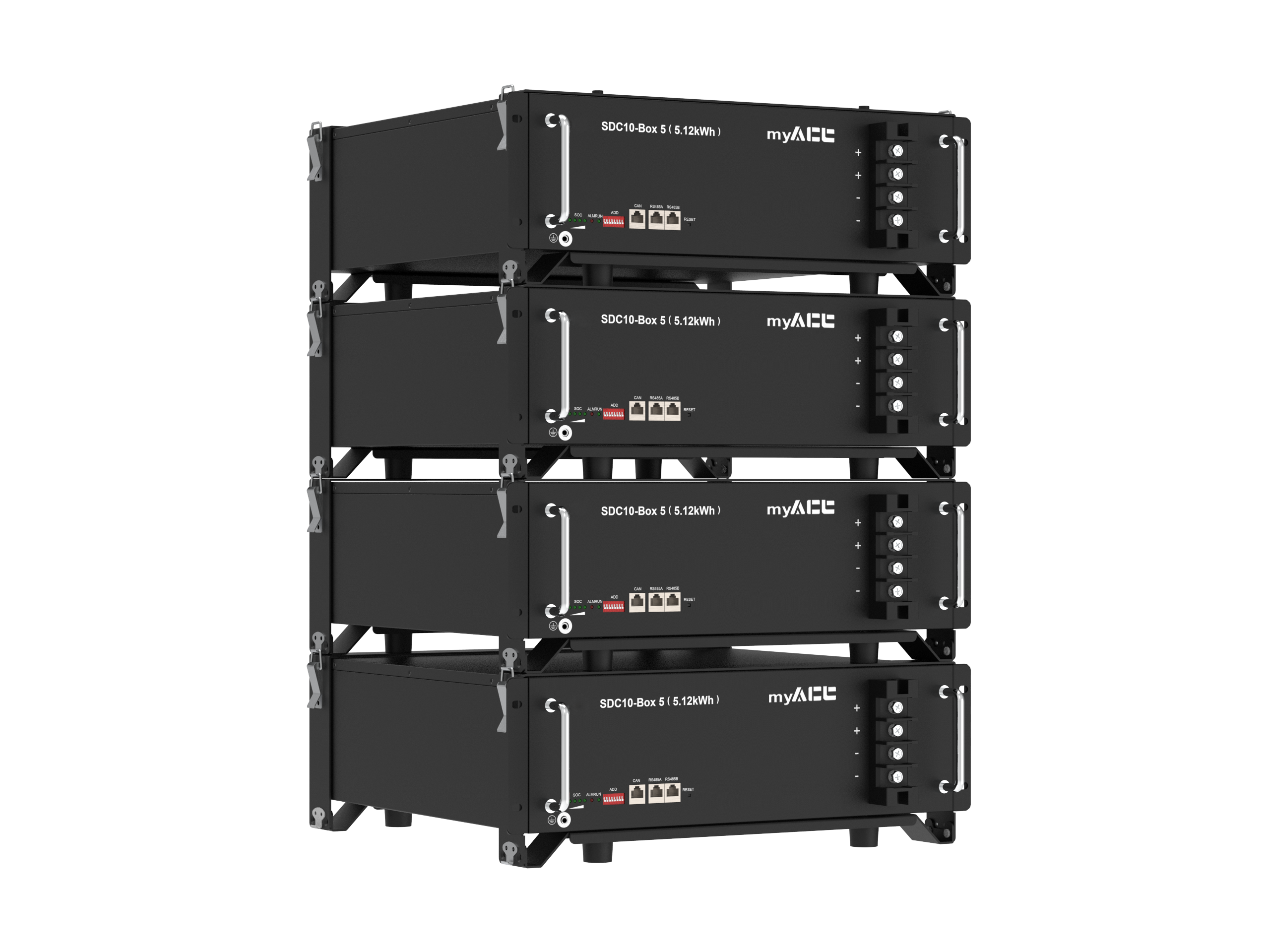

- Multiple installation methods
Support 19, 23-inch rack/wall/stacked combined installation.
- Wide compatibility
BMS pre-installs 10 mainstream inverter protocols to support customized protocol development.
- Easy to extend
Modular design, flexible expansion, up to 20 groups of parallel combination.
| Battery Model | SDC10-Box5/ABM10-Box5 |
Nominal Capacity | 5.12 kWh |
Output Power | 4.1 kW (Recommended) 5.12 kW (Maximum) |
Charging Voltage | 54.0 – 56.4 V |
Discharge Voltage | 45.0 – 48.0 V |
Nominal Voltage | 51.2 V |
Charge / Discharge | Recommended current 50 A（0.5C） |
Current | Maximum current 100 A (1C) |
Dimensions ( W / H / D ) | (443±2) * (135±2) * (440±2) mm |
Weight | 40 ± 2 kg |
Communication | Can / RS485 |
Installation | Floor / Wall mounting |
Operating Temperature | Charge：-5℃~+45℃；Discharge：-20℃~+50 ℃；Recommended：+15℃~+35℃ |
Scalability | Up to 20 batteries in parallel |
